ES0003 is a custom molded automotive rubber bellows and protective boot designed for components that require movement while remaining shielded from dust, splash and road debris. The convolution profile, installed length, movement range, end connections and rubber compound can be developed from drawings, 3D data or physical samples.
Automotive rubber bellows must accommodate repeated movement while maintaining secure connections at both ends. Convolution geometry, compressed and extended length, surrounding clearance, compound and inspection requirements are reviewed together with the installed assembly.
Convolution count, pitch, wall thickness and overall profile can be developed around the required compression, extension and bending movement.
Compressed length, extended length and working stroke are reviewed to reduce excessive stretching, buckling or interference during operation.
End collars, grooves, clamp seats and mounting diameters can be matched to the shafts, housings or surrounding components.
The flexible boot helps shield moving interfaces from dust, splash, road debris and other environmental exposure specified for the application.
EPDM, NBR, CR, VMQ, FKM and other compounds can be reviewed according to temperature, fluids, weathering and flexing requirements.
Critical diameters, lengths, wall sections, surface condition and agreed movement criteria can be checked during sample evaluation.
ES0002 specifications are developed around the installed space, required movement and service environment, with bellows geometry, end connections, compound and inspection requirements reviewed together.
| ES0002 Automotive Rubber Bellows Specifications | |
|---|---|
| Product Type | Custom Molded Automotive Rubber Bellows / Protective Boot |
| Seal Profile | Convoluted or application-specific bellows profile |
| Critical Dimensions | Defined by drawing, mating components and available installation space |
| Contact Width | End diameters, collar width and clamping areas defined by assembly |
| Compression | Compressed length, extended length and working stroke to be specified |
| Hardness | Selected according to compound, movement and connection requirements |
| Silicone Grade | EPDM, NBR, CR, VMQ, FKM or project-specific rubber compound |
| Operating Conditions | Temperature, fluids, ozone, weathering, splash and road debris as applicable |
| Color | Standard black or project-specific |
| Surface Requirements | Flash, parting line and appearance limits defined by drawing |
| Compliance Options | IATF 16949:2016; PPAP and material records when required |
| Inspection | Critical dimensions, surface condition, fit and movement checks |
Before repeat production, ES0002 samples can be evaluated in their installed, compressed and extended conditions to confirm fit, movement and agreed inspection requirements.
Compression & Extension Review
Fit, Material & Inspection
Custom rubber bellows are used around moving automotive components where flexible protection, secure end connections and resistance to environmental exposure are required.

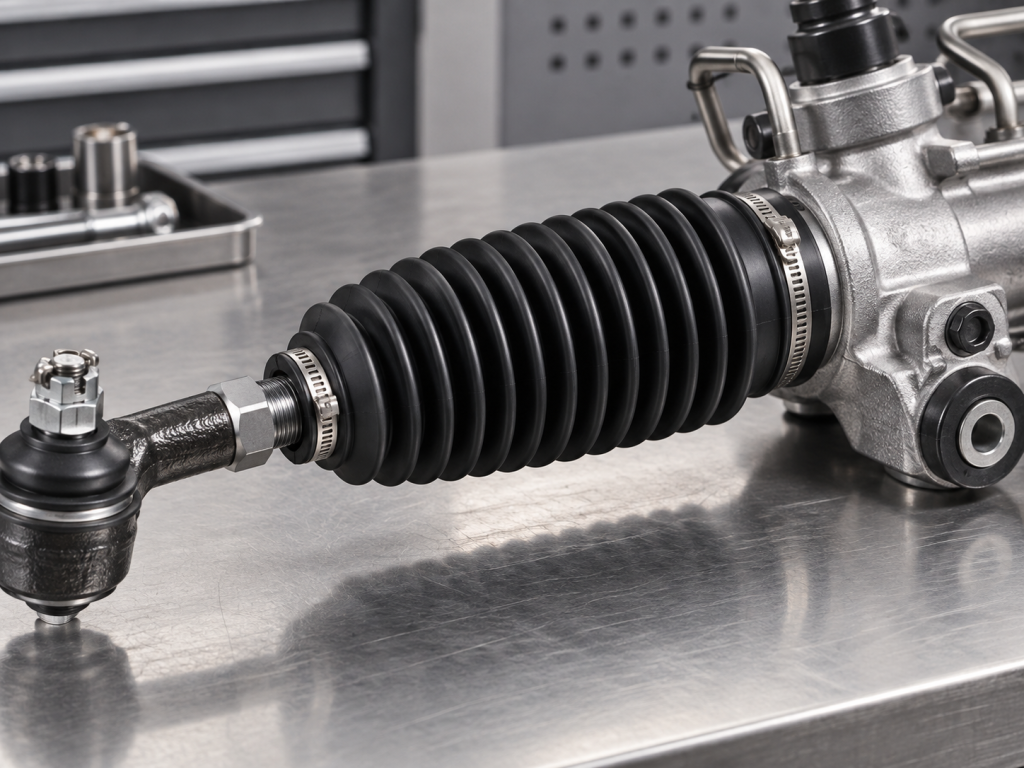

Bellows can help shield steering rods, linkages and moving joints from dust, splash and road debris while allowing axial or angular movement.

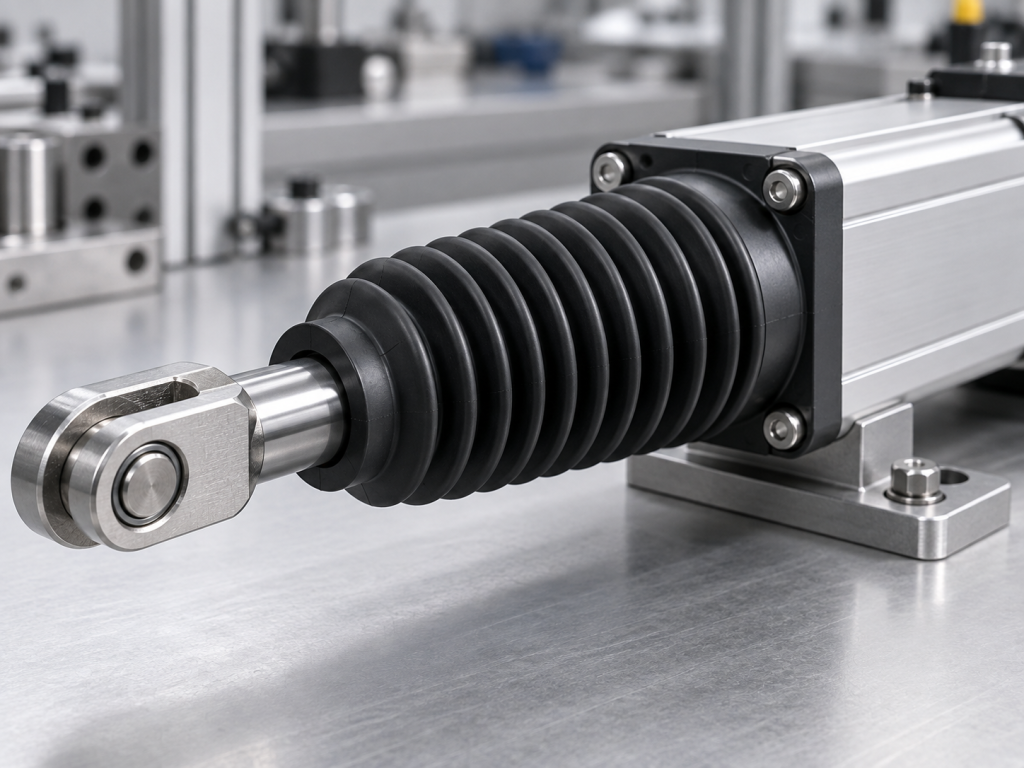

Protective boots can be developed around chassis and suspension interfaces where repeated flexing and environmental exposure must be considered.

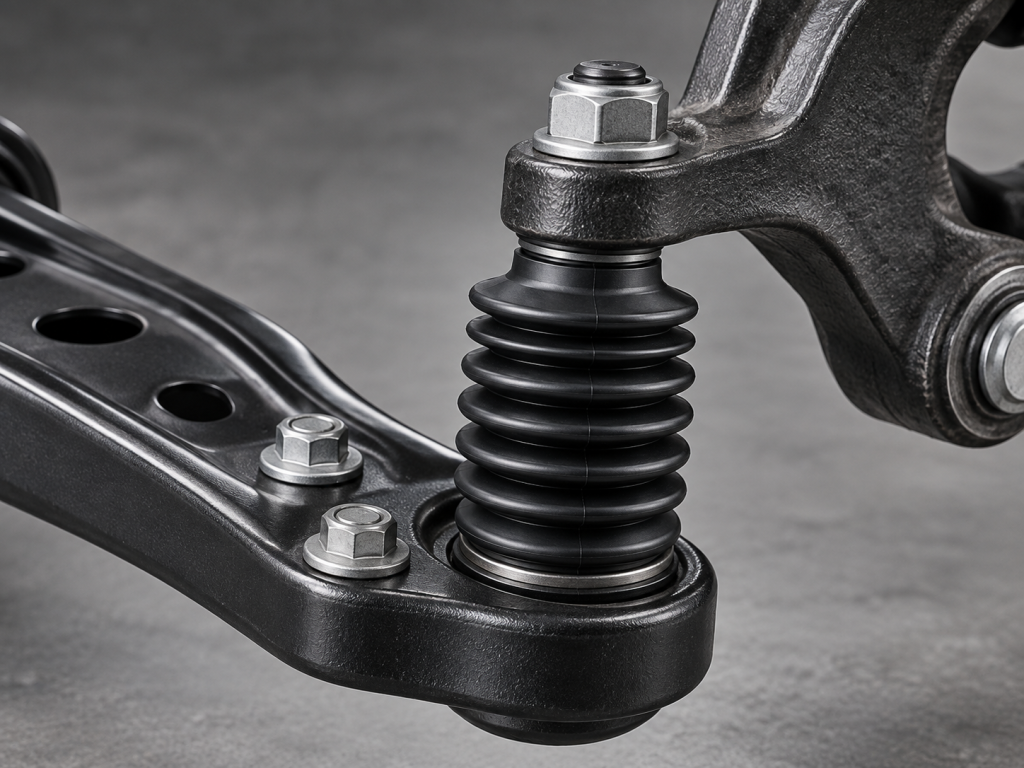

Accordion profiles accommodate compression, extension and limited misalignment around actuator shafts and mechanical control rods.

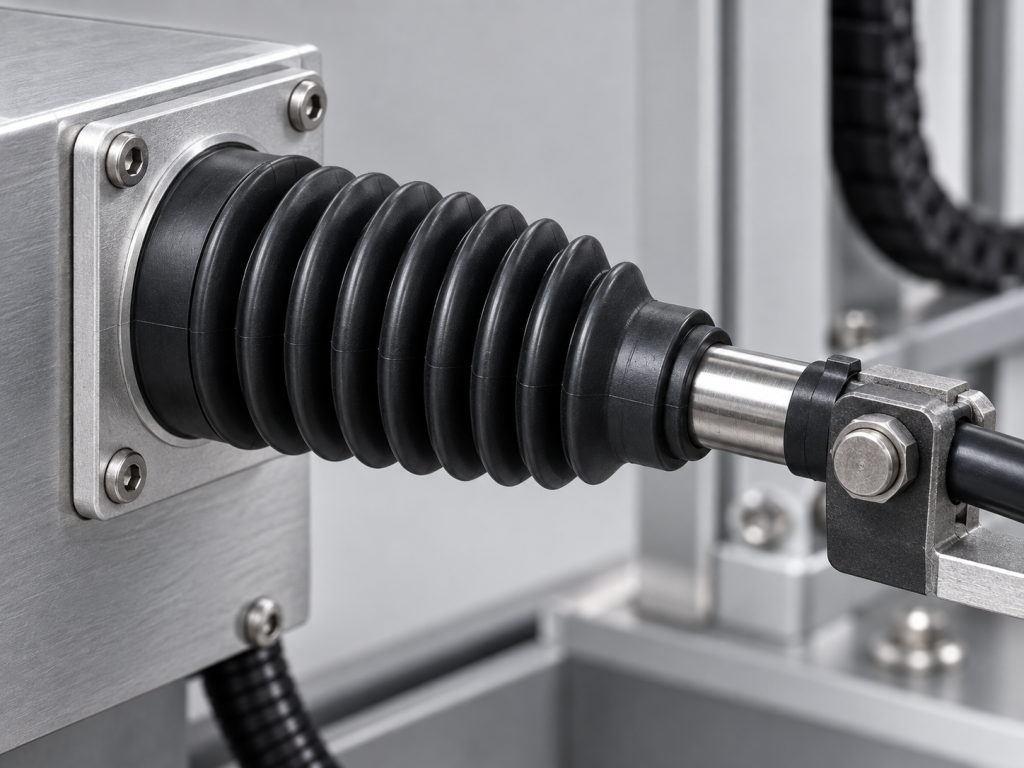

Custom end collars can help protect moving pass-through points and mechanical interfaces from contamination and abrasion.

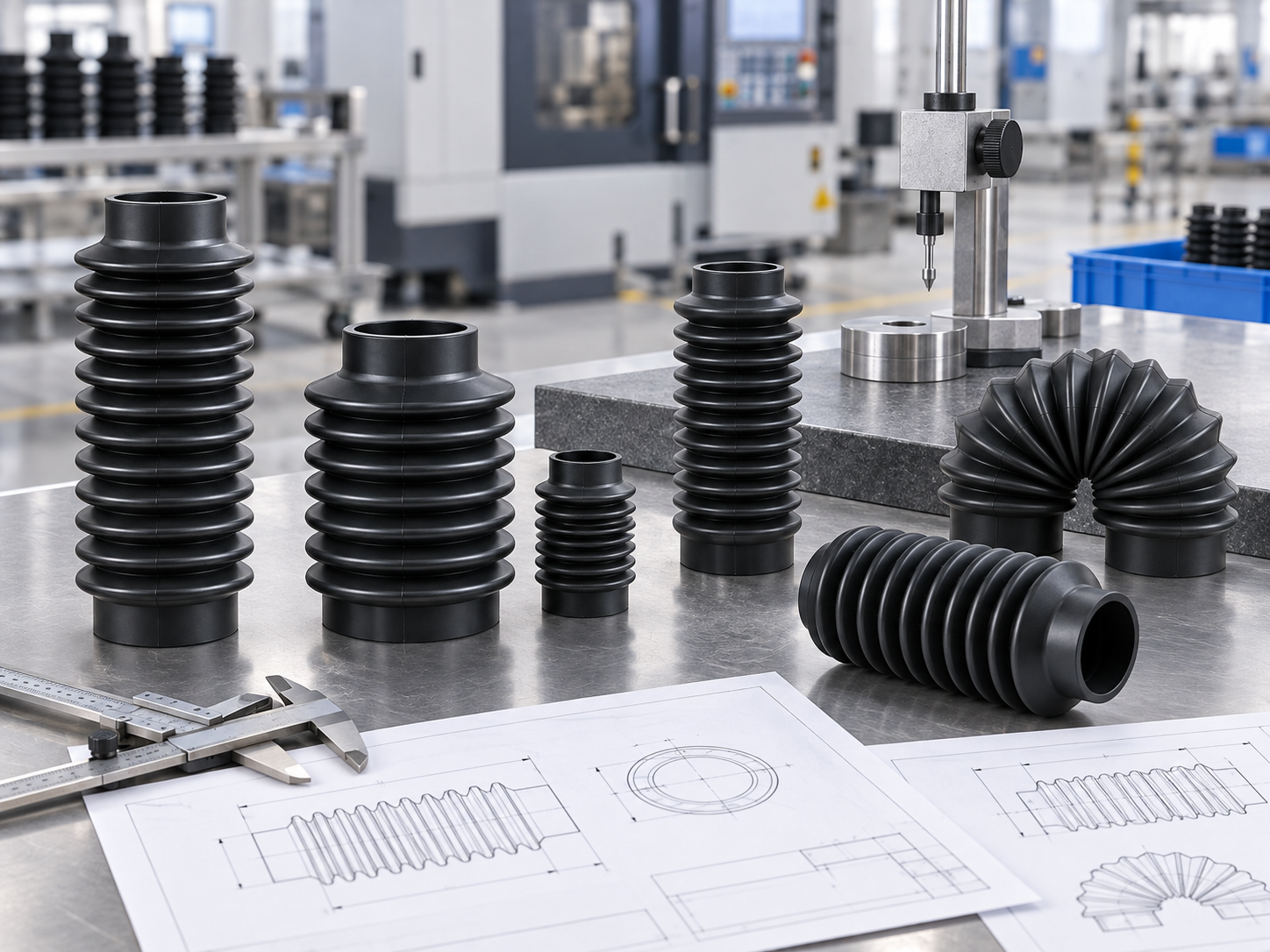

ES0002 development can move from movement and interface review to tooling, sample evaluation and repeat production under agreed automotive material and inspection requirements.
Bellows profile, installed space, compressed and extended length, end connections and movement range are reviewed before tooling.
Initial samples can be evaluated for end fit, compression, extension, flexibility, critical dimensions and surface condition.
Compound specifications, dimensional reports, material records and PPAP documentation can be prepared when required.
Approved tooling, compound specifications, inspection criteria and production records can be maintained for repeat orders.
